Six-Position Adjustment Bracket

Rating:
95% of 100

This six-position nylon adjustment bracket enables chaise lounges and adjustable chairs to recline. Sold individually, not as a pair. See Description and tabs below.

SKU
30-908
$4.00
  • Buy 4 for $3.60 each and save 10%
  • Buy 10 for $3.40 each and save 15%
  • Buy 50 for $3.20 each and save 20%
  • Buy 100 for $3.00 each and save 25%

Add 3 screws per bracket $.66
$0.66

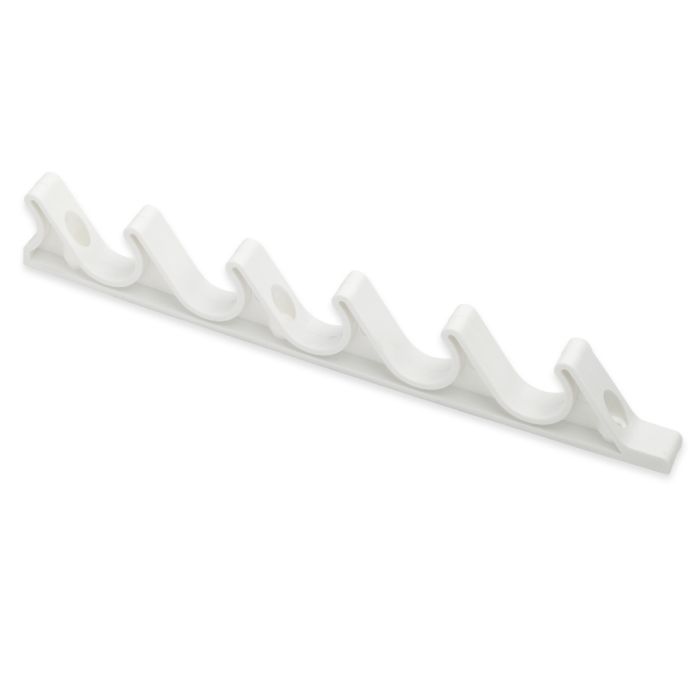

This six-position nylon adjustment bracket is installed on chaise lounges and adjustable chairs to allow the user to recline. Overall length is 10 5/8"; overall height is 1 1/2". Fits tubes with 3/4" to 1 1/4" diameter. Bracket measures 5 5/16" from top hole to middle hole; 3 9/16" from middle hole to bottom hole. Holes are 3/16" in diameter.

Available in white only and with/without mounting screws at 66 cents additional per bracket. Select "Add 3 screws per bracket" from the drop down menu. Mounting screws are the Stainless Steel #10 x 3/4" Phillips Flat Head Screw (SKU PFS-1034). Click on additional part views to help confirm if this is the bracket you need.

Sold individually, not as a pair. No minimum quantity required; larger quantities are eligible for volume discounts as shown above when applied to the same item, sku and color on the same order.

Shipping Information

Stock items are normally available for shipping. If a part is on backorder, an Availability drop down menu will appear on the product page. Please see Production Times and Transit Times & Rates in our Policies.

Write Your Own Review
You're reviewing:Six-Position Adjustment Bracket
Your Rating

How To Measure



How To Install

Re-use the screws on your old brackets or replace them with stainless steel screws (not included.) If holes on your old brackets were spaced differently, drill new holes to fit these brackets.
